Product Description:

• Model: MTP-3-B
• Dimensions: 90mm * 120mm * 50mm
• Print Method: Line thermal printer
• Paper Width: 80mm
• Print Width: 80mm
• Weight: 235g (excluding paper roll)
• Max Diameter of Paper Roll: 60mm
• Dot per Line: 384 dots/line
• Internal Characters:
  • ASCII (8×16, 9×17, 9×24, 12×24)
  • GB18030 (16×16, 24×24)
• Print Speed: 50~80mm/s
• Life Cycle Time: 100km (at printing density under 12.5%) / 100 million pulses
• Text and Graphic Support:
  • English, figures, symbols, Chinese, graphs, curves, icons pre-stored
  • Barcode formats: CODE39, EAN13, EAN8, CODABAR, CODE128, CODE93, ITF
  • QR code, PDF417
• Dot Pitch (Resolution): 203 DPI / 8 dots/mm
• Interfaces: Bluetooth, RS232, Mini USB
• Power: 1500mAh 7.4V rechargeable lithium battery
• Recharge Adapter: Standby recharging / AC adapter
• Self-Check: Without paper / cover open
• Black Mark Test: Supported
• Paper Feeding: Easy paper loading
• Commands: ESC/POS compatible with order sets
• Paper Cut: Manual
• Operating Conditions:
  • Temperature: -10°C to 50°C
  • Humidity: 20% to 85%
• Recharge Settings:
  • Temperature: 5°C to 40°C
  • Humidity: 20% to 85%
• Storage Settings:
  • Temperature: -20°C to 70°C
  • Humidity: 5% to 95%

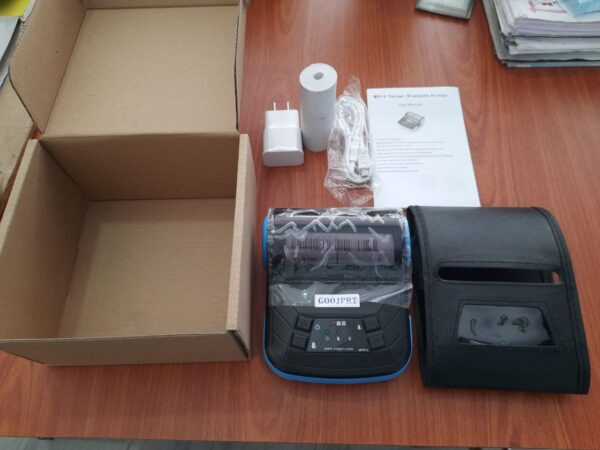

Standard Accessories:

• Long-term preservable paper
• AC adapter
• Li-ion battery
• USB cable

Optional Accessories:

• Serial interface cable
• Leather coat
• CD
